The Centre Vortex Multi-Chamber Filter is a complete filter system for koi and garden ponds. Through the combination of vortex pre-separation, mechanical filtration and biological filter stage, the filter supports clear water and stable water values.
The set includes the Center-Vortex filter, the corresponding filter media, and the lid. The robust GRP construction, multi-stage filtration technology, and various model sizes make the Center-Vortex a practical solution for pond systems of up to 100,000 litres.
Pond volume, stocking density, feeding, pump capacity, and filter media all influence the appropriate filter size. Aqualogistik will gladly assist you with the technical design for your pond system.
In stock
Product Category/ies:

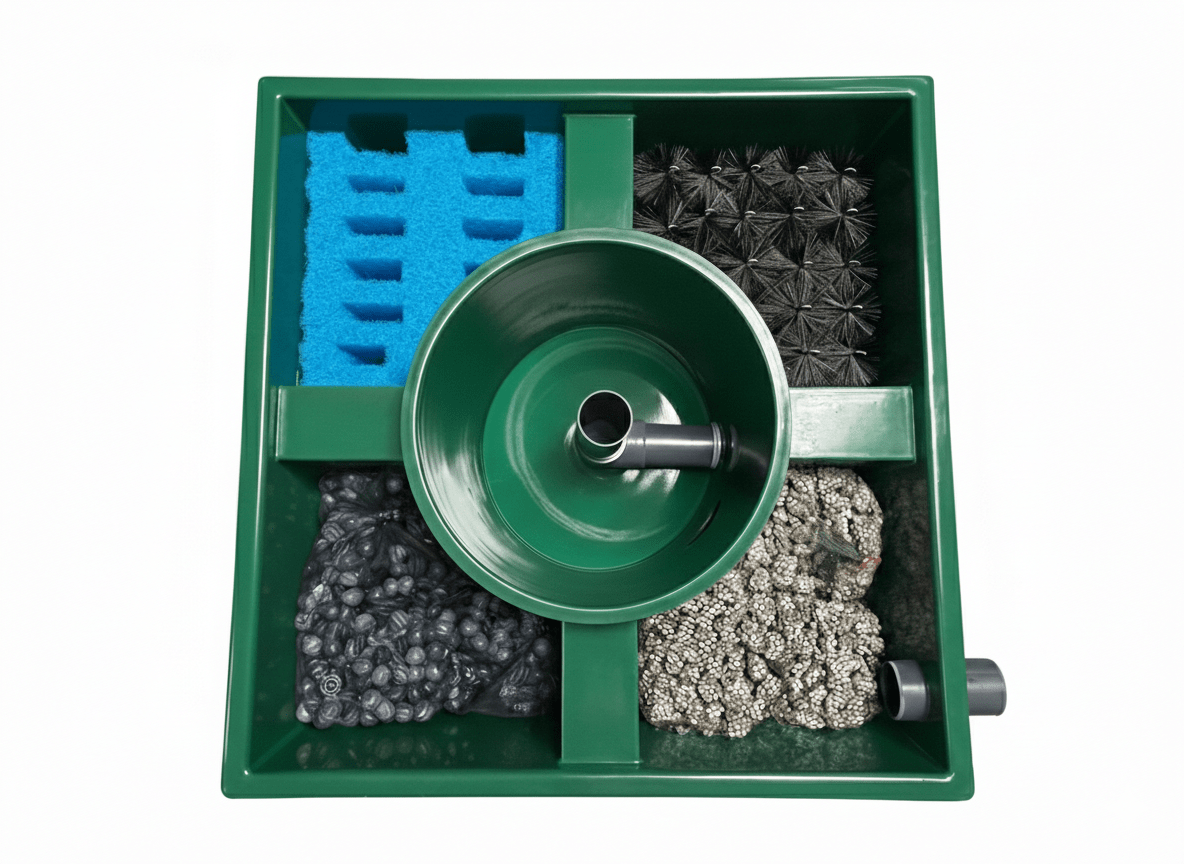

The Centre Vortex Multi-Chamber Filter is a multi-stage filtration system for garden ponds, koi ponds, and larger water features. The water is first guided into the vortex chamber, where coarse dirt particles are pre-separated. This is followed by mechanical and biological filter stages for further water treatment.
This product is supplied as a complete set, including a filling material pack and a lid. This provides you with a coordinated foundation for building a classic multi-chamber filter system.
Through the combination of vortex pre-separation, mechanical filtration, and a biological filter stage, the Center-Vortex is particularly suitable for pond systems where a robust, proven, and easily maintainable filter solution is sought.
The filter is made of robust fibreglass-reinforced plastic. Its solid construction is designed for continuous use in pond systems and offers a stable foundation for custom filter concepts.
Depending on the model and system setup, the Centre Vortex can be used for ponds up to 100,000 litres. Crucial for the correct design are the pond volume, fish stock, feeding, pump performance, pre-separation, UV-C technology, and the chosen filter media.
Delivery as a complete set: The centre vortex will be supplied including a matching filling pack and lid.
When planning, please check whether additional accessories such as draw slides, pipe material, filter media top-ups, a pump, or UV-C technology are required.
The Centre Vortex is available in several versions. The appropriate model size should be selected based on pond volume, fish stocking, pump capacity, and desired filter reserve.
| Execution | Application | Filter principle | Material | Note |
|---|---|---|---|---|
| C115 | small to medium-sized pond systems | Vortex, mechanical and biological filter stages | GFK | Select filter size and accessories to match the system |
| C20 | medium-sized pond systems | Vortex, mechanical and biological filter stages | GFK | Select filter size and accessories to match the system |
| C30 | medium to large pond installations | Vortex, mechanical and biological filter stages | GFK | Select filter size and accessories to match the system |
| C50 | larger koi and garden ponds | Vortex, mechanical and biological filter stages | GFK | Select filter size and accessories to match the system |
| C80 | large pond systems up to approx. 100,000 litres, depending on stocking levels and system design | Vortex, mechanical and biological filter stages | GFK | Select filter size and accessories to match the system |
The actual suitability does not depend solely on the pond volume. Fish stock, feeding, solar radiation, pump capacity, pipe routing, and supplementary UV-C technology significantly influence the necessary filter dimensioning.
The Center Vortex is suitable for systems where classic, robust, and easily accessible filter technology is desired. The filter size should be chosen to match the pond volume, fish stock, and planned circulation rate.
The strength of the centre vortex lies in the clear separation of the filter stages. Coarse dirt, mechanical particle retention, and biological treatment can therefore be clearly structured and maintained.
The centre vortex can be individually adapted to the respective system with suitable accessories and supplementary pond technology. Filter media, shut-off valves, a suitable pump, UV-C technology and a well-thought-out pipe layout are particularly important.
To ensure reliable filtration performance, the pump capacity, pipe diameter, filter media and UV-C output should be coordinated.
The choice of the appropriate Centre Vortex should not be based solely on the volume of the pond. Fish stock, feeding quantities, desired water quality, pump capacity and existing pipework are also crucial factors.
The centre vortex is supplied with a filling package and lid. Before installation, all components should be checked and prepared to suit the planned system.
The filter should be installed in such a way that the chambers remain easily accessible and contaminated water can be drained off in a controlled manner. Easy access facilitates cleaning, maintenance and inspection of the filter media.
The pump, UV-C technology, pipe diameter, and shut-off valve should be planned to match the chosen design before installation. This will avoid later adjustments and unnecessary conversions.
The relevant documents and language versions can be accessed via the download section below.
Legal notices
Safety notice
The Center-Vortex is a technical filter unit for ponds and water features. It should be installed, connected and operated in a manner appropriate to the system and in accordance with the technical specifications.
The filter must be set up securely and installed in such a way that the inlet and outlet function reliably. When working on a connected pump, UV-C technology, or electrical components, these must be disconnected from the power supply beforehand.
Wastewater from filter cleaning should be discharged in a controlled manner. For larger systems, professional planning of emptying and maintenance access is recommended.
Manufacturer Information
The Center Vortex is marketed under the brands Aqualogistik and TRIPOND. The filter system is designed for koi ponds, garden ponds, and technical water systems where robust multi-chamber filtration with vortex pre-separation is to be used.
For reliable operation, the filter should be appropriately sized for the system and combined with suitable filter media, pump capacity, pipework, and UV-C technology.
